| Place of Origin | China/Japan |
| ブランド名 | MITSUBISHI |
| Model Number | HG-KR43B |

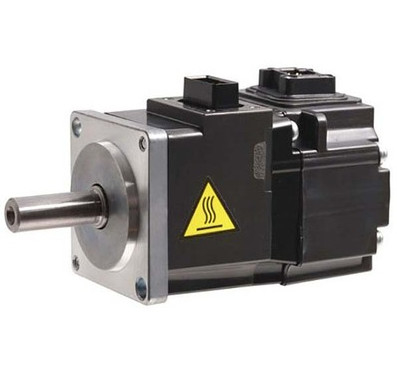

HG-KR43B Servomotor HG Series, Power 400 W
FA-Servo-Motion: Servo Motor
| Series | MELSERVO-J4 |
| Type | HG-KR |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,4 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 4,5 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 0,393 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 6000 |
| Protection Class | IP65 |
| Encoder Type | 22-BIT |
Product Dimensions & Weight
| Depth (mm) | 135,1 |
| Weight (kg) | 1,8 |
| Width (mm) | 60 |
| Height (mm) | 77,1 |
Delivery
Company Profile
Changsha Zhinian Automation Equipment CO.,LTD. specializes in distributing and selling of well-know automation products, which includes Programmable Logic Controllers (PLC), Human Machine Interface (HMI), frequency Inverters, Servo system of Omron,Proface, Fuji, Siemens, Mitsubishi, AB etc.
